Product Description
PyleHome Model : PTAU23 Mini Stereo Power Amplifier, 2 x 40 Watt Mini Stereo Power Amplifier – 2 x 40 Watt with USB, AUX, CD & Mic Inputs RCA REC Output 1/4″ Phone Jack 1/4″ MIC Input Jack USB Reader Function Power On LED Indicator 110/220 Voltage Selector AUX1, AUX2, CD & RCA Inputs 2 x 40 Watt Peak at 4-Ohm Four Push Type Speaker L/R Terminals Switchable MIC Pager and Mixing Modes Switchable AUX1, AUX2, CD, USB Inputs Bass, Treble, Balance, Master & Mic Volume Controls Dimensions:7.48″W x 2.72″H x 5.39″D Pyle PTAAU23 Home Amplifier is perfect for powering any stereo system. Complete with USB and AUX inputs, and 2 x 40 watts of power – this simple to use and durable amp has bass and treble controls, a slick blue LED output level display, L/R RCA inputs, and 4 speaker outputs. Using sophisticated circuitry and premium components for uncompromising musicality – this product is famous for delivering powerful and accurate sound. This small but powerful amp delivers clear and crisp audio for it listener. Durable and affordable, this amp is made to last.
From the Manufacturer
Click here for a larger image
Click here for a larger image
Click here for a larger image
Click here for a larger image
The Ultimate Stereo Power Amplifier
This amplifier gives you the power and versatility you need to create a professional sound system. Its wide frequency response makes it suitable for amplifying any type of audio including music or vocals. It can be used in meeting halls, restaurants, schools, stores and, at home –the perfect solution for paging systems anywhere. Get the power you need with 2 x 40 Watt to handle all your audio needs.
Switchable Mixing (Karaoke) Mode
When set to ‘mixing’ the signals from AUX1, AUX2, CD, & MIC will exist at the same time and works great for creating a karaoke event. Your music will play from your selected audio source and you will be able to sing through a connected microphone. (Microphone not included)
Switchable MIC Pager Mode
When set to ‘pager’ the signal from AUX1, AUX2, & CD will be attenuated by -10dB and the signal from MIC will override to page (Auto Talkover) and makes for an exceptional paging system.
USB 2.0 Input Interface with LED Indicator
You’ll be in control with playback options when you insert a USB flash drive –or similar USB device. Play your favorite audio files from your computer’s media library when you connect it directly into the amplifier.
.14-Inch AUX-In Jack
The .14-inch jack, located conveniently in the front, allows you to connect the input of many devices including iPods, MP3 players, smartphones, CD players, etc.
Push Type Speaker Terminals
Lets you easily connect speaker wires directly to the amplifier. The speaker impedance can be ranged from four to eight Ohms for the general stereo output. The total speaker impedance must be at least four Ohm per channel at stereo mode.
110/220 Voltage Selector
This amplifier has selectable input voltage from 110 V/60 Hz (the standard in USA and Canada) to 220 V/50 Hz (for European operation). Please make sure the switch is in the proper position before operating.
.25-Inch Phone Jack
Accepts headphones with .25-inch plugs.
.25-Inch Microphone Input Jack
Accepts microphones with .25-inch plugs.
REC RCA Output
Lets you connect the amplifier to a tape deck for recording.
Take Control

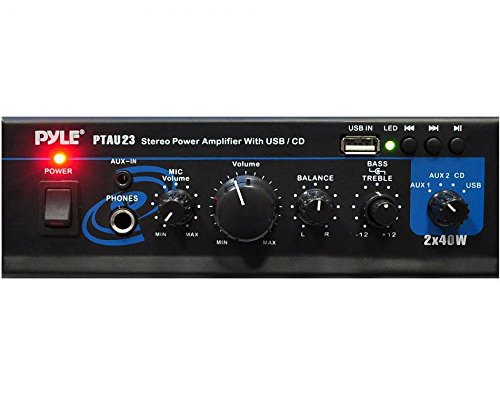

Use the control center panel located on the face of the unit to make adjustments to microphone volume, master volume, balance, bass, and treble
Replaceable Power Fuse
The amplifier uses a fuse for protection against surges and short circuit. If the amplifier suddenly turns off and will not turn on, check the fuse and replace it if necessary. (Replacement fuse to use: 1.5-amp, 250-volt, fast-acting .2 x .8 inches fuse -not included)
Additional Features
- Harmonic Distortion: 0.3%
- 2 x 40 Watt RMS at four Ohms
- Blue LED Output Level Display
- Frequency Response: 20 Hz-20 kHz
- Power Fuse: 1.5 A, 250 V Fast-Acting (.2 x .8 inches)
- Power Requirement: 120 V AC 60 Hz/230 V AC 50 Hz
- Tone Controls: Bass & Treble: +/-10 dB (100 Hz/10 kHz)
- Dimensions: 8.27 x 2.72 x 5.39 inches
2X40 WATT POWER: The Pyle Dual Channel Stereo Amplifier is perfect for your PA and home theater acoustic sound system. Gives you 2×40 watts power which can be used for multi speakers w/ 4 ohm impedance, enjoy high quality amplified audio
6 INPUTS: This personal digital amp box supports various external sources – 3 pairs RCA audio input for tuner, CD player, tape deck, or camcorder, 1/4″ microphone IN, 1/4″ headphone jack, AUX IN, USB. Also features a REC output for recording
PAGER/MIXING MODE: The mini integrated indoor AV receiver features pager and mixing switch. In pager mode, the signal from the microphone will override to auto talkover, use for hosting and meetings. Switch to mixing mode for a fun karaoke session.Do not use harsh chemicals, solvents or detergents
USB 2.0/SD CARD INPUT: The sound amplifying mixer device features a USB/SD card input to support flash drives or SD card. Allows you to play your favorite audio files from your computer’s media library when you connect it directly to the amp
EQ CONTROLS: The improved professional compact bookshelf sound amplifier features crisp and responsive buttons for power switch, MP3 controls – previous, next, play/pause. Rotary knob controls for input, MIC, balance, bass, treble, and master volume
2x40W 10% RMS at 4-ohm – Power ON LED Indicator – USB Reader Function
1/4″ Phone Jack – MIC Volume Control – Master Volume Control
Balance Control – Bass and Treble Tone Control – Switchable AUX1/AUX2/CD/USB Input
1/4″ MIC Input Jack – Switchable MIC Pager and Mixing Modes – AUX1/AUX2/CD RCA Input
RCA REC Output – Four Push Type Speaker L/R Terminals – 110/220 Voltage Selector – Dimensions:7.48”W x 2.72”H x 5.39”D
